RKB — Swiss technological bearings

Ball bearings

Designed to withstand combined loads and high speeds, made from high quality materials with special heat treatments, and low-maintenance in service.

• Deep groove ball bearings — open and closed (shielded or sealed) designs. The general-purpose bearing: radial load plus axial load in both directions, high speed, low friction.

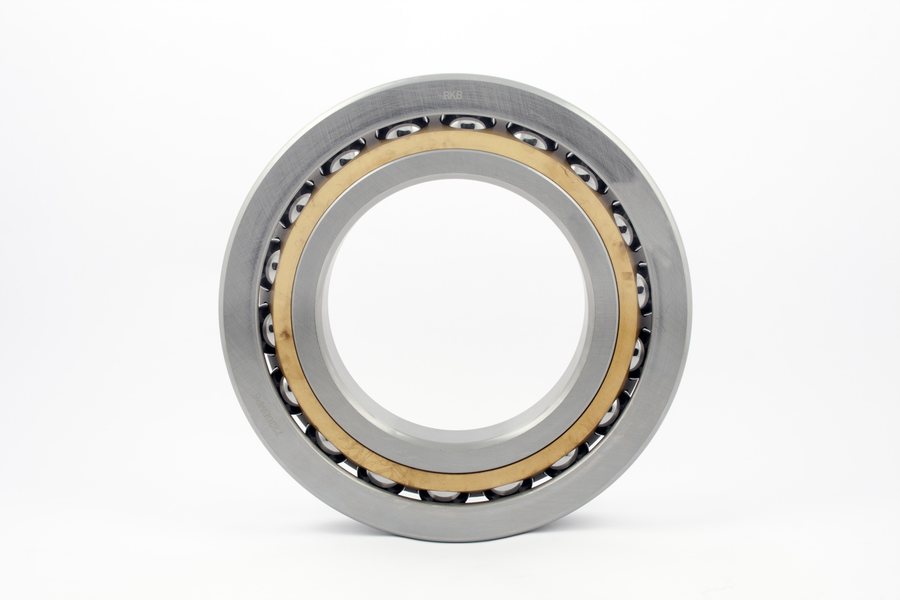

• Angular contact ball bearings — single row, double row and four-point contact. Angled raceways carry heavy combined radial and axial load.

Electric motors, pumps, fans, gearboxes, machine tool spindles, textile machinery, agricultural equipment

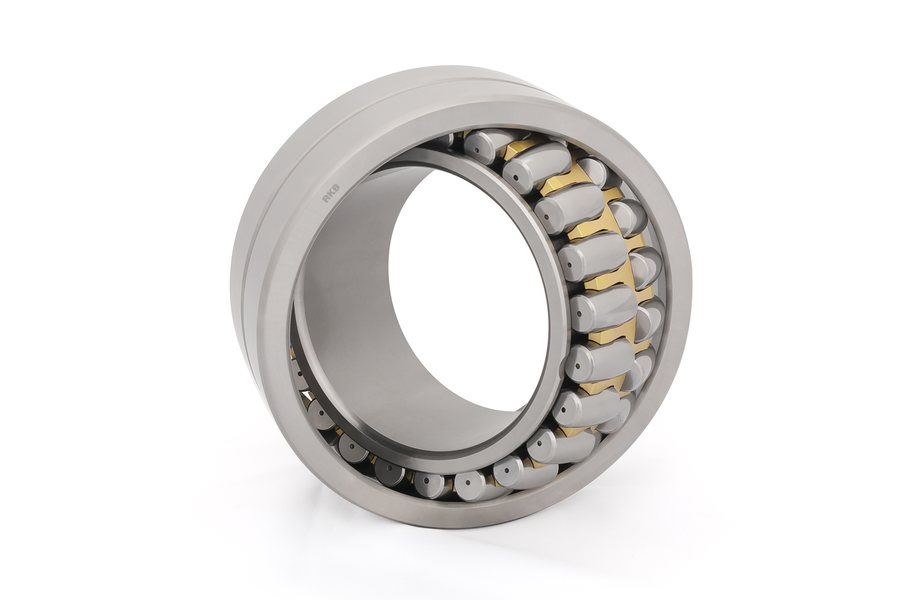

Spherical roller bearings

Engineered to withstand high radial forces and moderate axial forces acting in both directions, and to dynamically accommodate misalignment caused by shaft bending — RKB's largest and most heavily engineered segment.

• Standard and special designs
• Cylindrical or tapered bore, open or sealed execution
• All standard diameter and width series

Vibrating screens, crushers, ball mills, rotary kilns, conveyors, fans, gearboxes, paper machines, marine

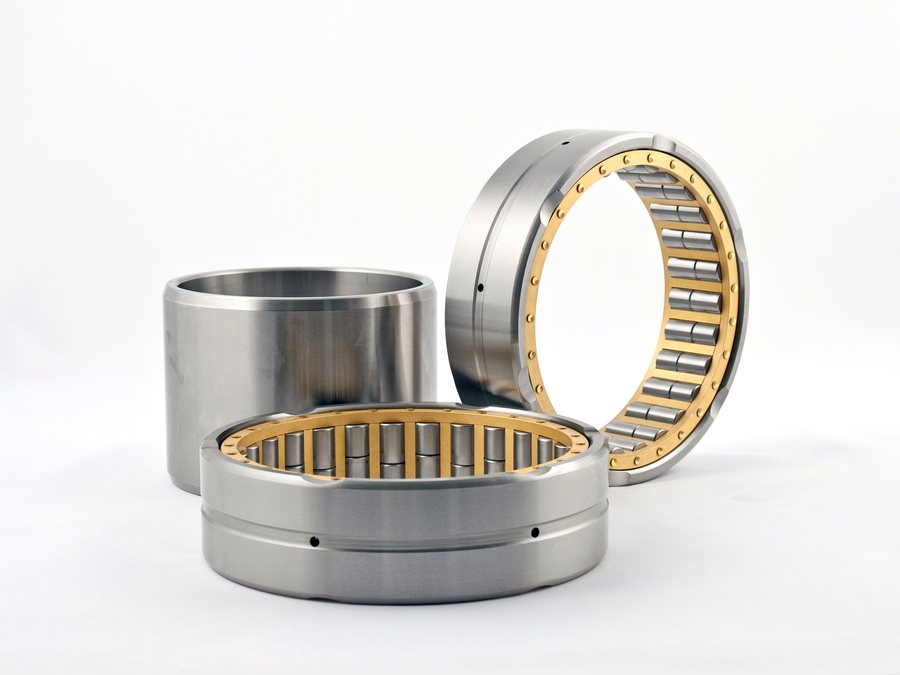

Cylindrical roller bearings

Extremely high radial load capacity with improved internal geometry. Line contact between roller and raceway, and a separable design that lets one ring float axially.

• Single row and single row full complement
• Double row and double row full complement
• Multi-row designs for rolling mill work rolls
• Cylindrical or tapered bore, caged or cageless

Electric and traction motors, gearboxes, roll necks, large pumps, machine tool spindles, railway axleboxes

Tapered roller bearings

Engineered to withstand combined radial and thrust loads, from high hardness materials giving fatigue strength and wear resistance under severe operating conditions.

• Single row, double row and four-row (TQO)
• Metric and inch series
• Standardised and non-standardised dimensional series

Wheel hubs and axles, gearboxes, off-highway and construction machinery, railway axleboxes, rolling mill roll necks, cranes

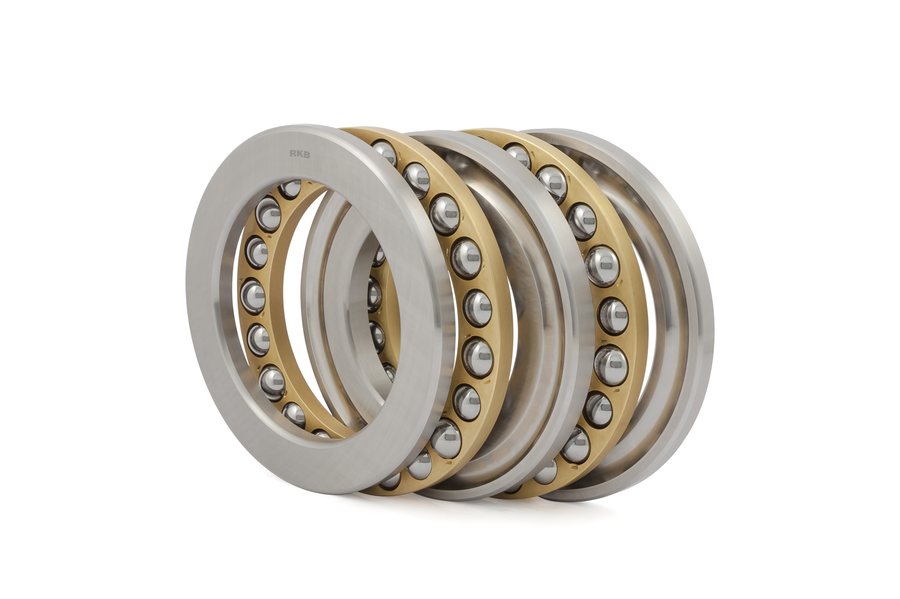

Thrust bearings

Designed to support high axial loads and, in some designs, moderate radial loads. Available in single and double direction, with flat or sphered housing washers.

• Thrust ball bearings — pure axial load at moderate speed
• Cylindrical roller thrust — high axial capacity, low section height
• Tapered roller thrust — very heavy axial load and high stiffness
• Spherical roller thrust — heavy axial load with self-alignment

Vertical pumps, mixers and agitators, extruders, presses, screw-down mechanisms, crane hooks, marine propeller shafts

Additional products

Where the application will not accept a catalogue answer.

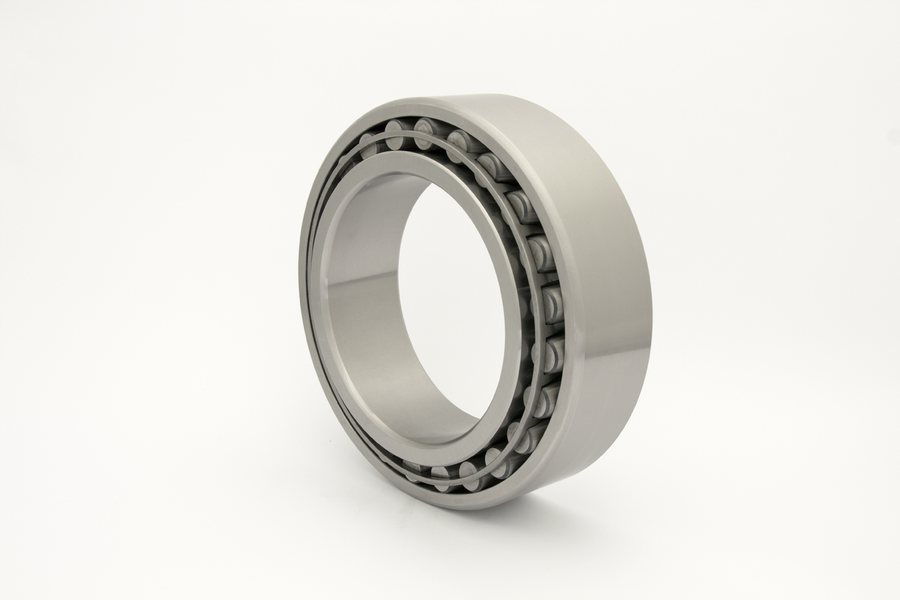

• Toroidal roller bearings — self-aligning and axially displacing in one unit; J type, V full complement and sealed versions
• Needle roller and combined bearings — maximum capacity in minimum section
• Slewing bearings — standard and customised, for heavy slow-turning loads
• Railway bearings — TDI, TDO, single and paired spherical, paired cylindrical (NJW+NJPW)
• Wound (spring) bearings — BR and B types for continuous casting and extreme heat
• Solid oil bearings (W64) — lubricated for life, for wet and contaminated environments
• Spherical plain bearings, rod ends and track rollers
• Accessories — adapter sleeves, withdrawal sleeves, lock nuts, clips and locking devices
